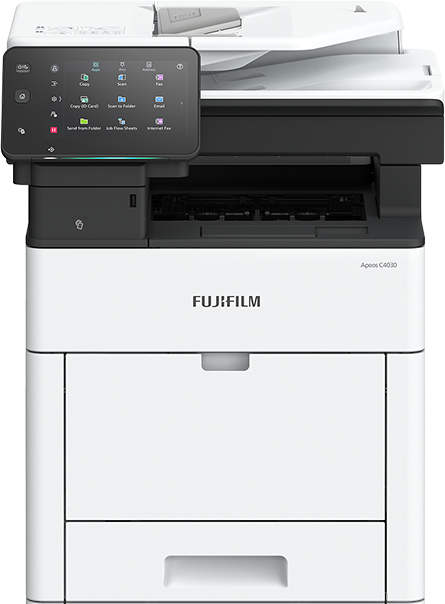

FUJIFILM Apeos C3530 A4 Colour Multifunction Printer - 35PPM Print / Copy / Scan / Wifi Optional

The FUJIFILM ApeosPort C3530 is a perfect colour multifunction device for medium sized workgroups, this device has an intuitive easy to use colour touch screen, fast single pass duplex scanner, superior image quality at 1200 x 2400 dpi, true Wireless support, flexible paper handling capacity, FUJIFILM's renowned build quality & reliability, with one of the lowest running costs in its class.

2297

Basic Specifications Print / Copy / Scan / Wifi Optional

Item C3530 A4 Colour Multifunction Printer

Type Desktop

Storage Device Capacity*1 128 GB

Colour Capability Full Colour

Output Tray Capacity*7 250 sheets

Memory Capacity 4 GB (Max: 4 GB)

Scan Resolution 600 x 600 dpi

Printing Resolution 1,200 x 2,400 dpi

Warm-up Time*2 33 seconds or less (23 degrees Celsius room temperature)

Recovery Time

(Recovery Time from Sleep Mode) 20 seconds or less (23 degrees Celsius room temperature)

Original Size Maximum of A4, Letter, Legal*3 for both Sheet and Book

Max A4, Letter, Legal

Paper Size

Min A6*4 [64 x 127 mm when using Bypass Tray]

Image loss width Lead edge 4.0 mm, Trail edge 4.0 mm, Right/Left edge 4.0 mm

Paper Weight*5 Paper Tray 60 to 220 gsm

Bypass Tray 60 to 220 gsm

First Copy Output Time B/W: 7.5 sec. (A4 / Monochrome priority mode)

Colour: 8.0 sec. (A4 / Colour priority mode)

Continuous Copy Speed*6 B/W: 40 ppm

B/W: 35 ppm

Colour: 40 ppm

Colour: 35 ppm

Standard Standard Tray: 550 sheets

Paper Tray

Capacity*7

Bypass Tray: 150 sheets

Optional 550-Sheet Feeder: 550 sheets

Max 2,350 sheets [Standard + 550-Sheet Feeder x 3]

Power Supply AC220-240 V +/- 10 %, 8 A, 50/60 Hz common

1,270 W (AC220 V +/- 10 %), 1,450 W (AC240 V +/- 10 %)

Maximum Power

Consumption

Sleep Mode: 0.4 W (AC230 V)

Low Power Mode: 11 W (AC230 V)

Ready Mode: 83 W (AC230 V)

Dimensions W 470 x D 500*8 x H 582 mm W 420 x D 500*8 x H 565 mm

Weight*9 35 kg 34 kg

*1: The Storage Device Capacity is not totally available for customers.

*2: It may change depending on usage conditions.

*3: For Apeos C3530, the Legal size reading is from the Duplex Automatic Document Feeder.

*4: When using A6 size paper with the Standard Tray, the optional A5 LEF / A6 Tray Guide is

required.

*5: It is recommended to use our recommended paper. Correct print output may not be possible

depending on the requirement.

*6: The speed may be reduced due to the image quality adjustment.

*7: 80 gsm paper.

*8: The motor part of Duplex Automatic Document Feeder rear is included.

*9: Including Toner Cartridge.

Print Function

Max A4, Letter, Legal [215.9 x 520 mm when using Bypass Tray]

Paper Size

Min A6*1 [64 x 127 mm when using Bypass Tray]

Image loss width Lead edge 4.0 mm, Trail edge 4.0 mm, Right/Left edge 4.0 mm

Continuous Print Speed*2 Same as the Basic Specifications / Copy Function

[PCL Driver]

Standard

Standard: 1,200 x 2,400 dpi, High Quality: 1,200 x 2,400 dpi,

Printing

High Resolution: 1,200 x 1,200 dpi

Resolution

[Adobe® PostScript® 3TM Driver]

Optional

High Speed (Standard): 600 x 600 dpi, High Quality: 1,200 x

2,400 dpi, High Resolution: 1,200 x 1,200 dpi

Page

Standard PCL5 / PCL6

Description

Language

[PCL Driver]

Windows 11 (64 bit), Windows 10 (32 bit / 64 bit), Windows

Server 2022 (64 bit), Windows Server 2019 (64 bit), Windows

Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows

Server 2012 (64 bit)

Supported

Operating

System*3

[Mac OS X Driver]

macOS 12 / 11 / 10.15 / 10.14

[Adobe® PostScript® 3TM Driver]

Windows 11 (64 bit), Windows 10 (32 bit / 64 bit), Windows

Server 2022 (64 bit), Windows Server 2019 (64 bit), Windows

Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows

Server 2012 (64 bit)

macOS 12 / 11 / 10.15 / 10.14

Interface Standard Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB3.0

Optional Wireless LAN (IEEE 802.11a / b / g / n / ac)

*1: When using A6 size paper with the Standard Tray, the optional A5 LEF / A6 Tray Guide is

required.

*2: The speed may be reduced due to the image quality adjustment. The printing speed may be

reduced depending on the document.

*3: Please refer to our official website for the latest supported OS.

Item Description

Type Built-in type

Optional Adobe® PostScript® 3TM

Standard

Optional

Item Description

Type Colour Scanner

Scan Function

Scan Resolution 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi

Scan Speed Same as the Scan Speed for the Duplex Automatic Document Feeder

Interface Standard Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T

Optional Wireless LAN (IEEE 802.11a / b / g / n / ac)

Fax Function (Optional)

Item Description

Original Size Max: A4, Legal*1

Recording Paper Size Max: A4, Legal; Min: A5

Transmission Time 2 seconds and more but fewer than 3 seconds*2

Transmission Mode ITU-T G3

Applicable Lines Telephone subscriber line, PBX, Fax Communication (PSTN),

Maximum 1 port*3 (G3-1 port)

*1: For Apeos C3530, the Legal size reading is from the Duplex Automatic Document Feeder.

*2: When A4 size document with approximately 700 characters is transmitted in standard

image-quality (8 x 3.85 lines/mm) and in high-speed mode (28.8 kbps or faster, JBIG). Only

indicates the time for transmitting the image information and does not include the

communication control time. The total communication time will vary depending on the

contents of the document, the type of machine receiving the fax, and line condition.

*3: No. of FAX lines is up to 1 port. Port refers to number of channels for FAX.

Duplex Automatic Document Feeder

Item C4030 C3530

Original Size / Paper Weight Max: A4, Letter, Legal; Min: A5*1

60 to 128 gsm (In Duplex: 60 to 128 gsm)

Capacity*2 100 sheets 50 sheets

Copy

B/W : 40 ppm

B/W : 35 ppm

(A4, Simplex)

Colour : 40 ppm

Colour : 35 ppm

B/W: 53 ppm, Colour: 53 ppm

Scan Speed*3

(1 pass, 2 sided scanning;

Scan

B/W and Colour: 105 ppm)

[Standard Document (A4),

200 dpi, to Folder]

*1: The minimum custom size is 139.7 x 139.7 mm.

*2: 80 gsm paper.

*3: The scanning speed varies depending on the documents.

550-Sheet Feeder (Optional)

B/W: 48 ppm, Colour: 48 ppm

(1 pass, 2 sided scanning;

B/W and Colour: 96 ppm)

[Standard Document (A4),

200 dpi, to Folder]

Item Description

Paper Size

Max: A4, Letter, Legal

Min: A5

Custom Size: 76.2 x 190.5 mm to 215.9 x 355.6 mm

Paper Weight Feeding Capacity*1 /

Number of Tray*2 Dimensions 60 to 220 gsm

550 sheets x 1-tray

W 420 x D 465 x H 123 mm*3

Weight 6.6 kg

*1: 80 gsm paper.

*2: Up to 3 trays can be added.

*3: Height when installing excluding connections.

Caster (Optional)

Item Description

Dimensions*1 W 725 x D 773 x H 90 mm*2

Weight 12.6 kg

*1: Including the foot part.

*2: Height when installing excluding connections.

Cabinet (Optional)

Item Description

Dimensions*1 W725 x D773 x H 336 mm*2

(Inside Dimension: W 360 x D 415 x H 200 mm)

Weight 23.8 kg

*1: Including the foot part.

*2: Height when installing excluding connections.
